Single Rated Line Pull |
13000 lbs (5897KGS) |
Motor |
7HP Series Wound |
Controller |
12-foot Remote Switch |
Gear Grain |
3-Stage Planetary |

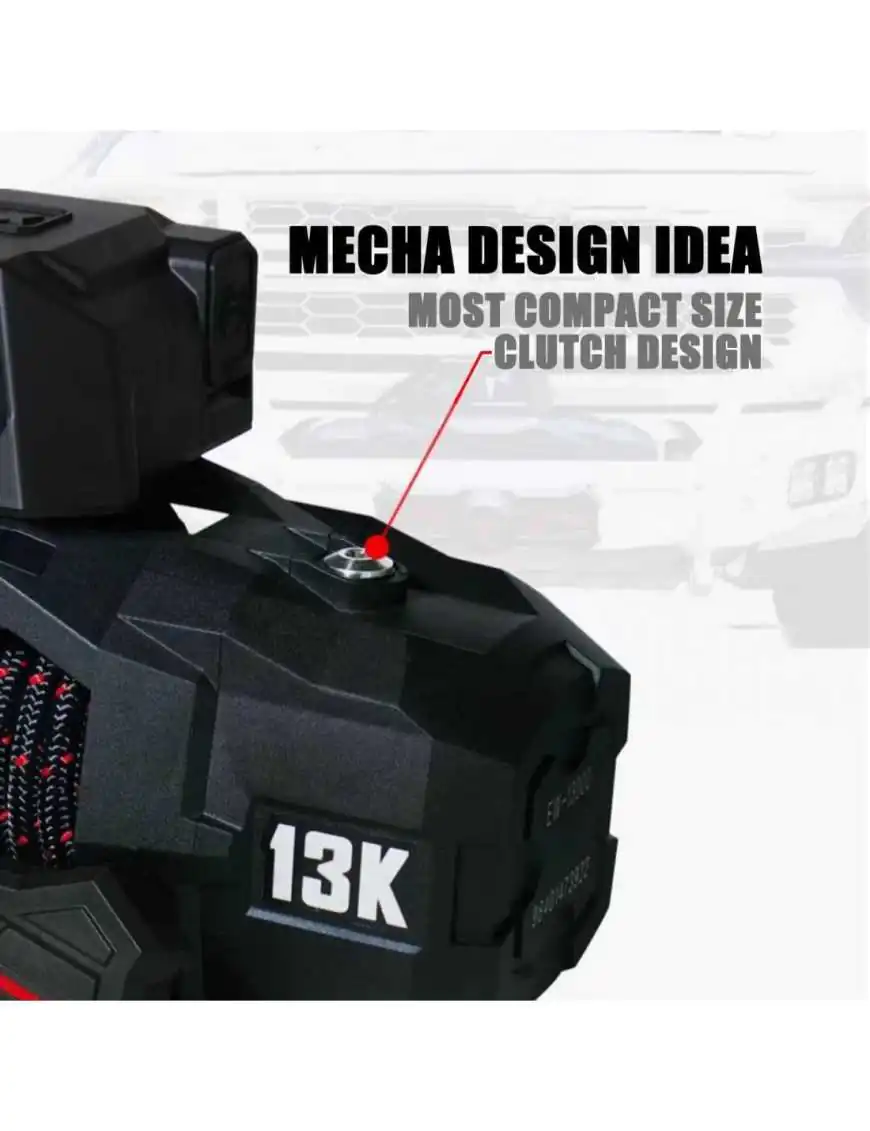

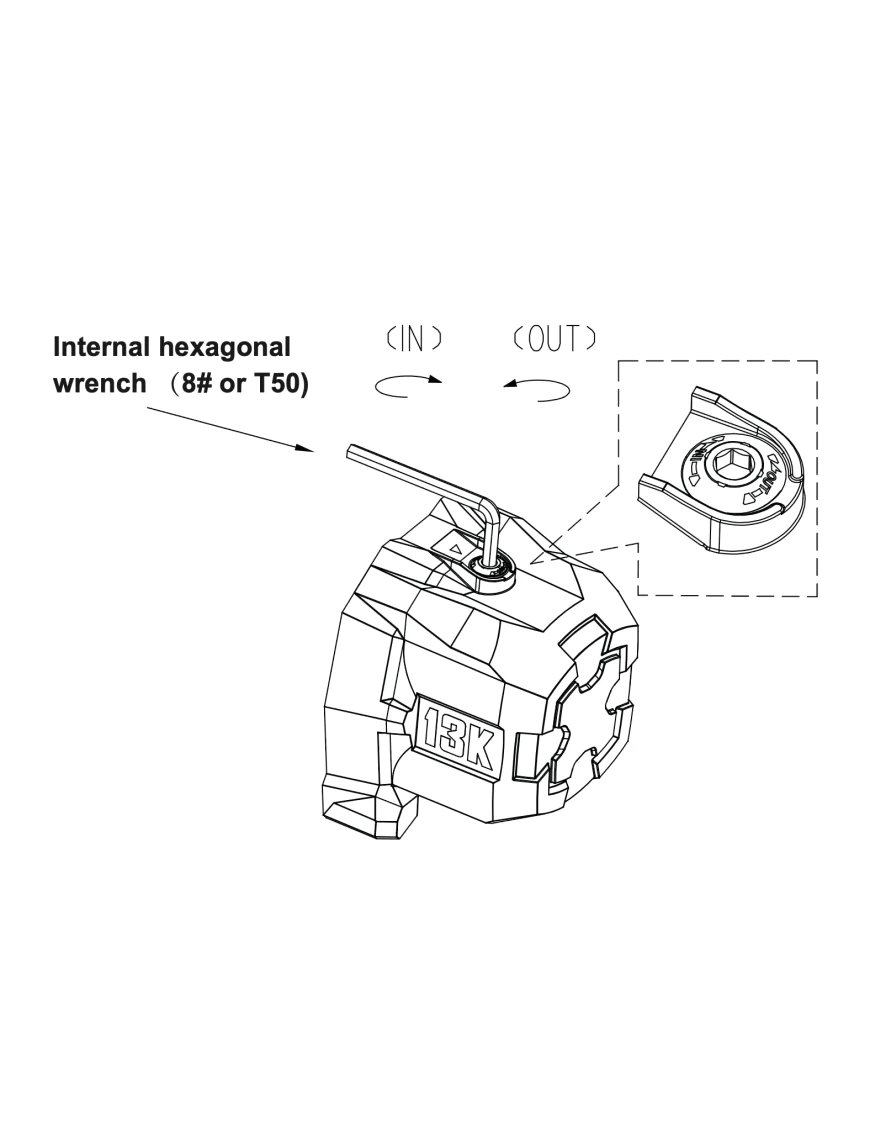

Clutch |
Sliding Ring Gear |
Braking |
Automatic in-The-drum |
Drum Size |
Dia.2.5’’(63.5mm) x Length 9.6’’(224mm) |

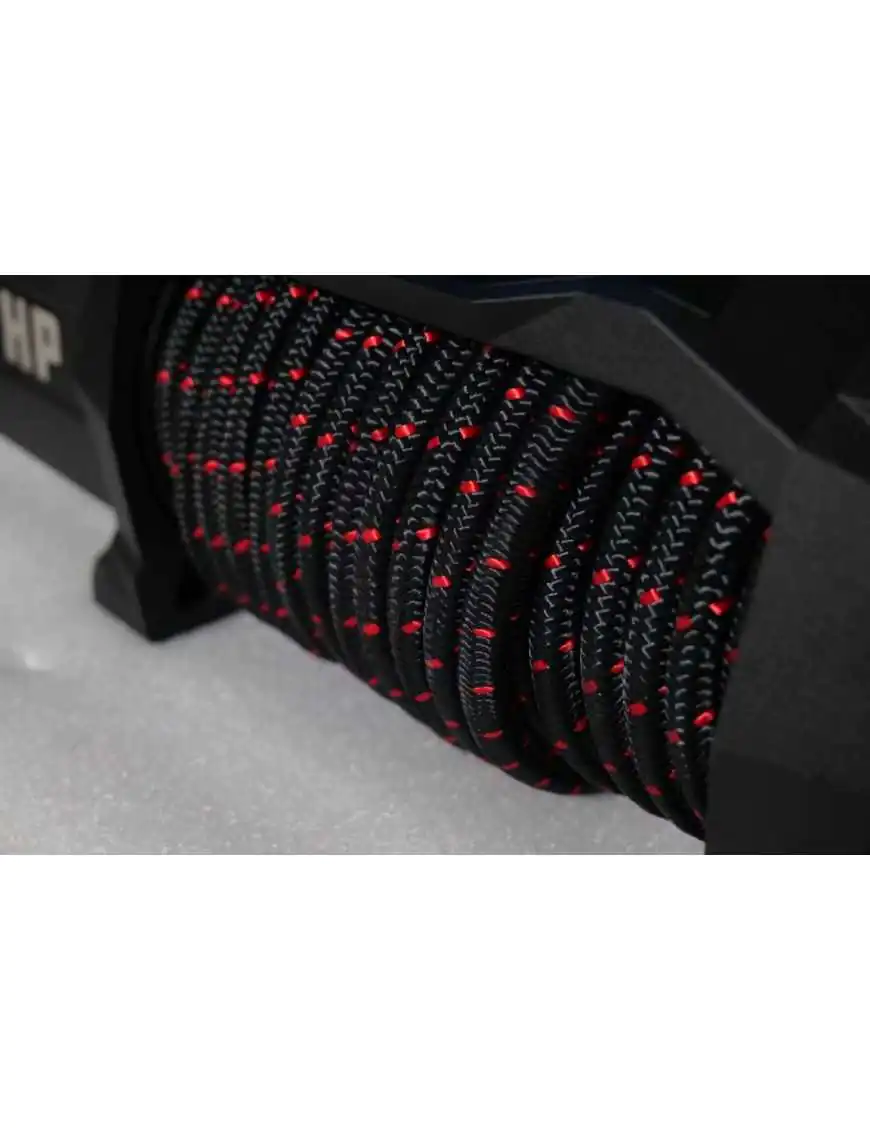

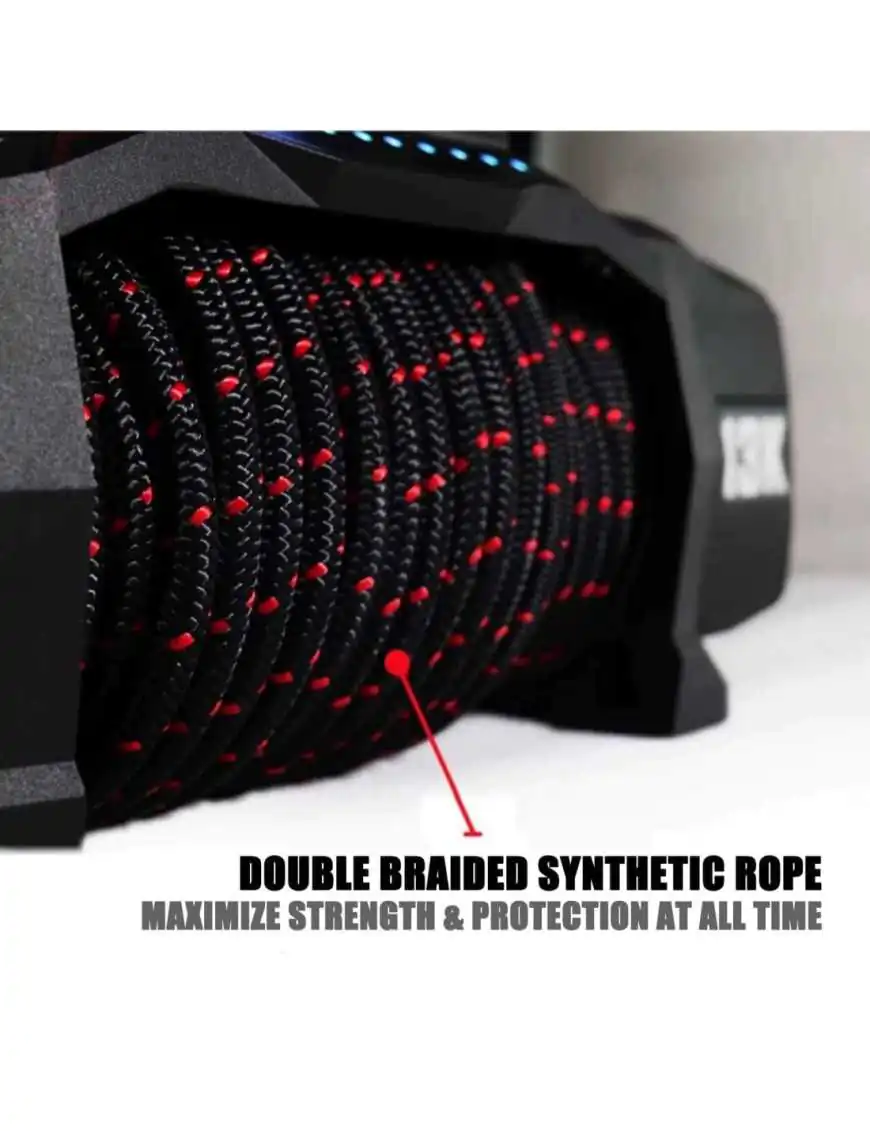

Synthetic Rope (COMP series) |
12mmx28m |
Fairlead (COMP Series) |
Aluminum Hawse Fairlead |

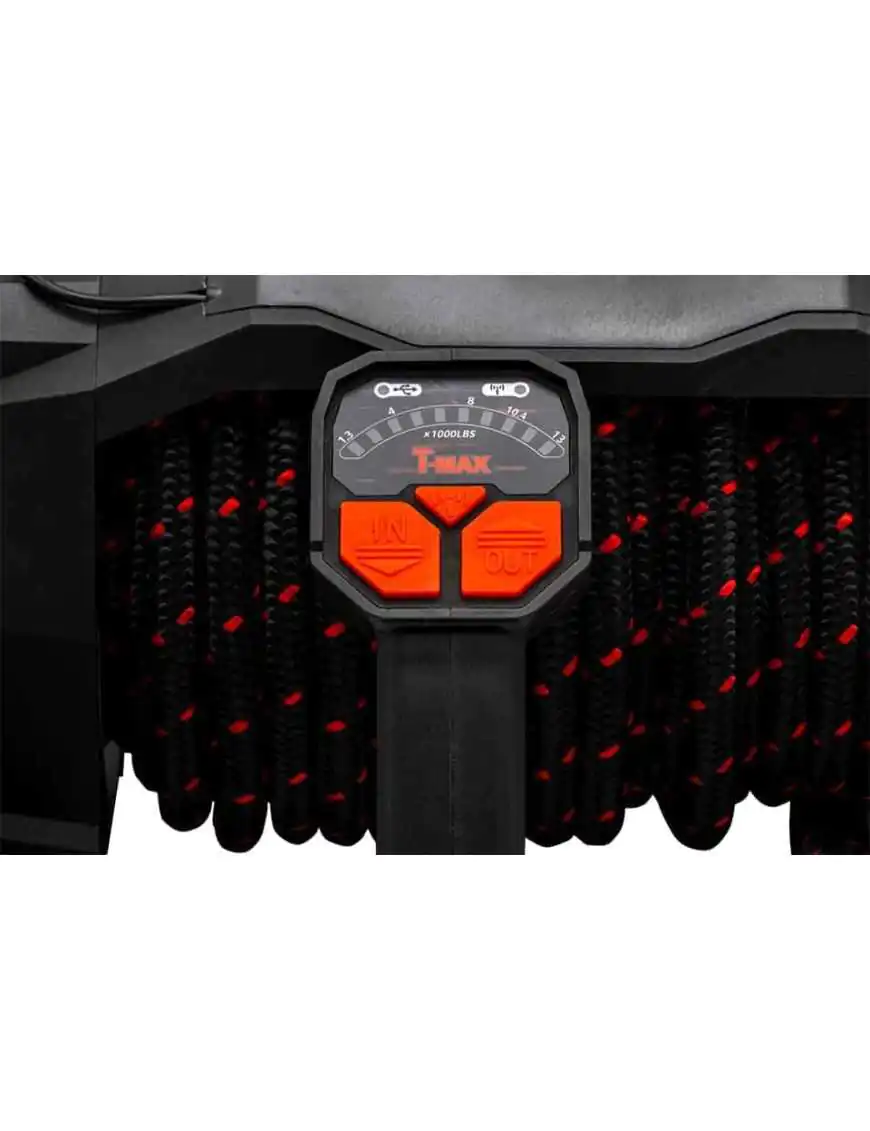

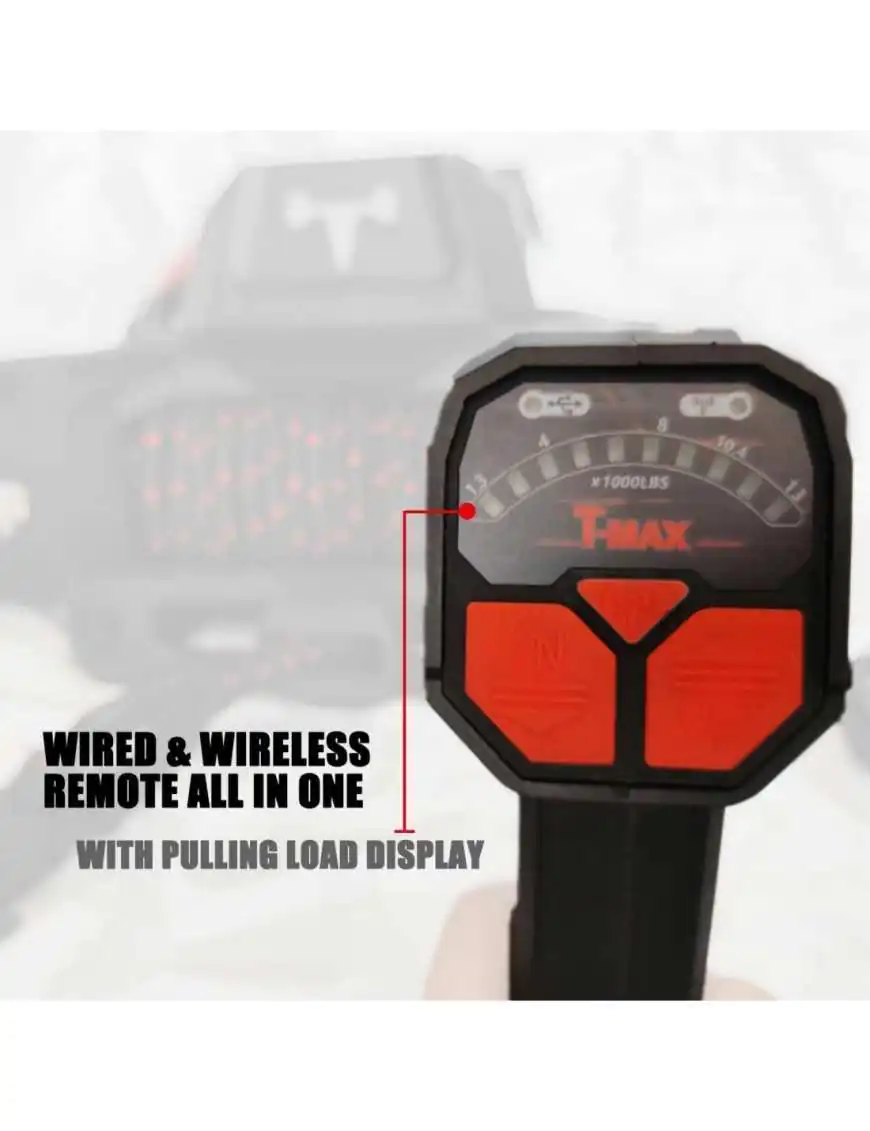

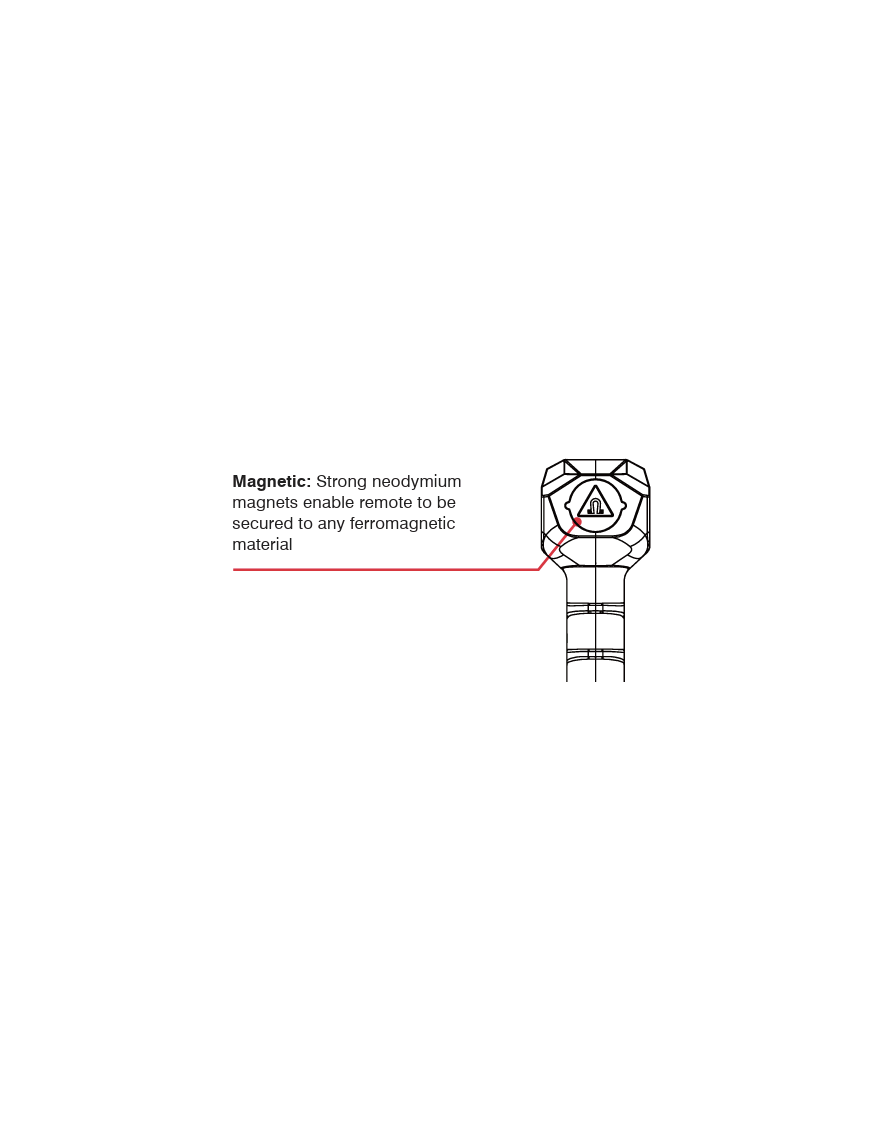

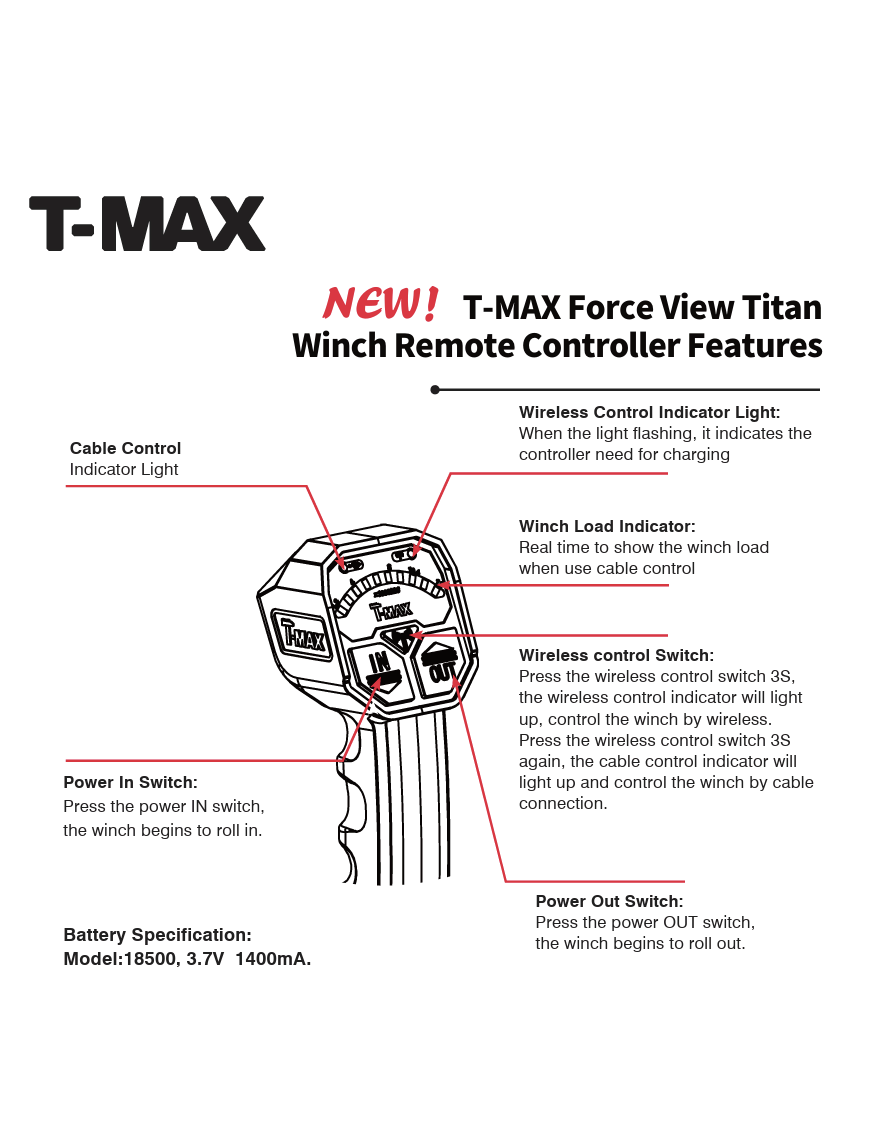

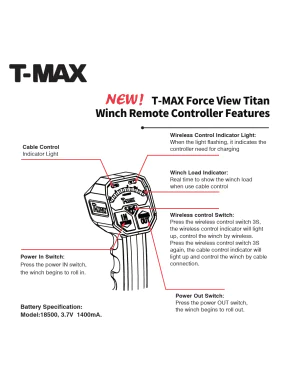

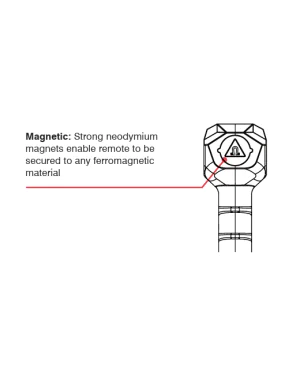

Remote Control |
Included |
Battery |
Recommended 650CCA |
Battery Leads |
1.83m |
Net Weight |
78.1lbs, 29.5kg |

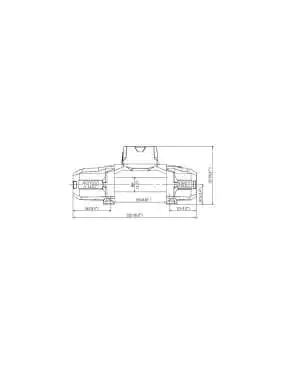

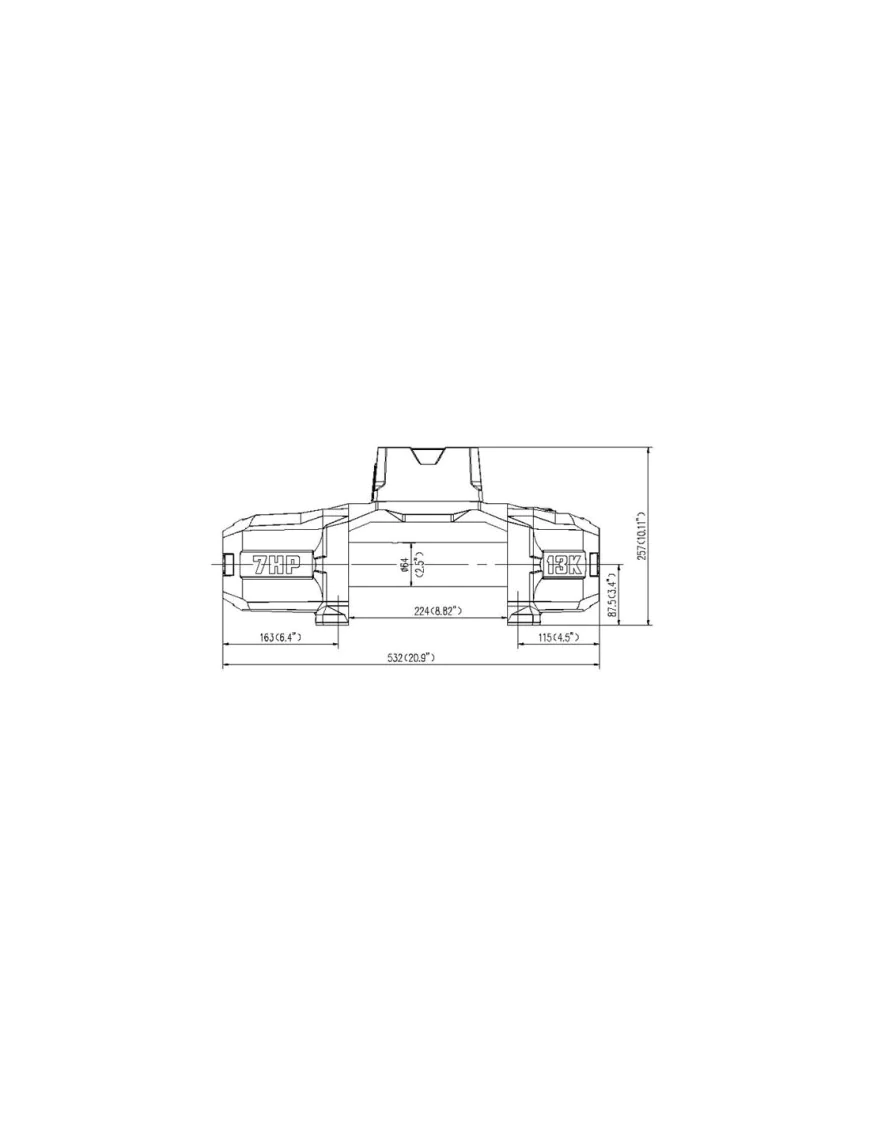

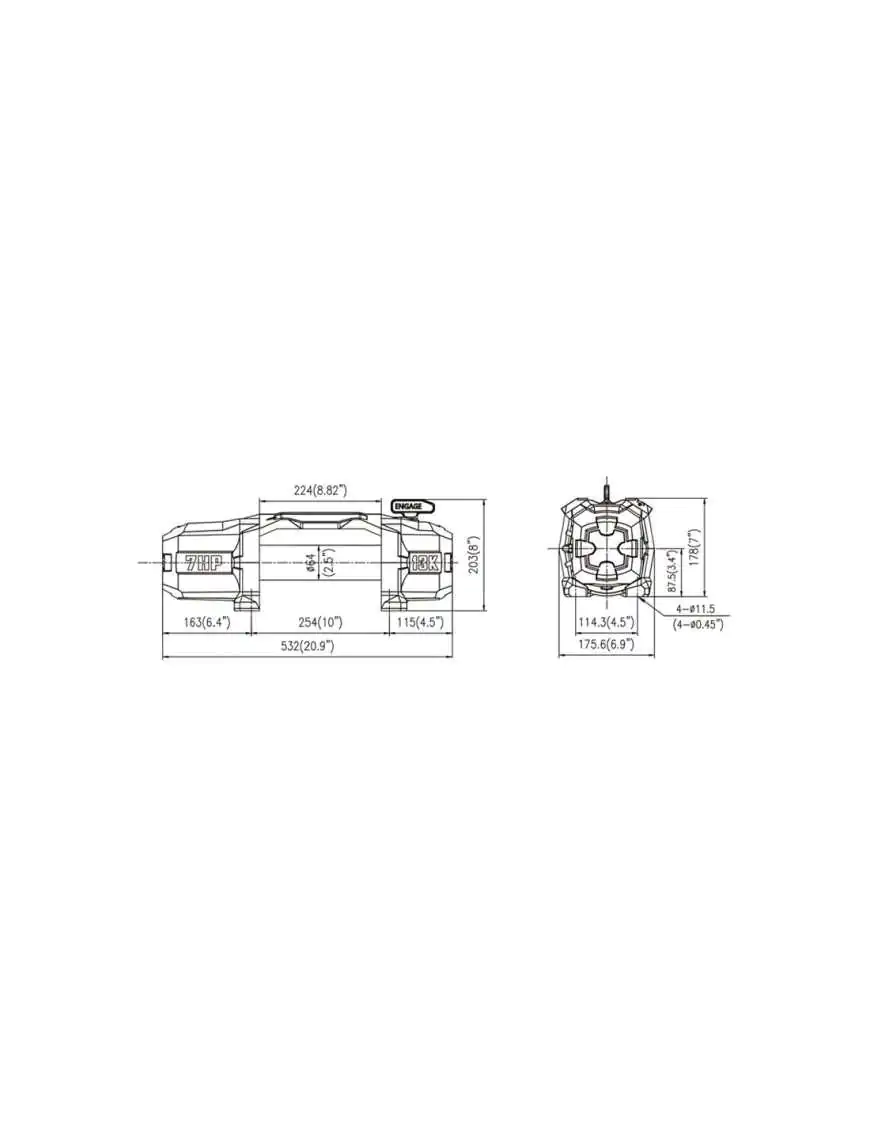

Overall Dimensions (LxWXH) |
532x175x178mm |
Mounting Bolt Pattern |
254x1143.3mm |
|

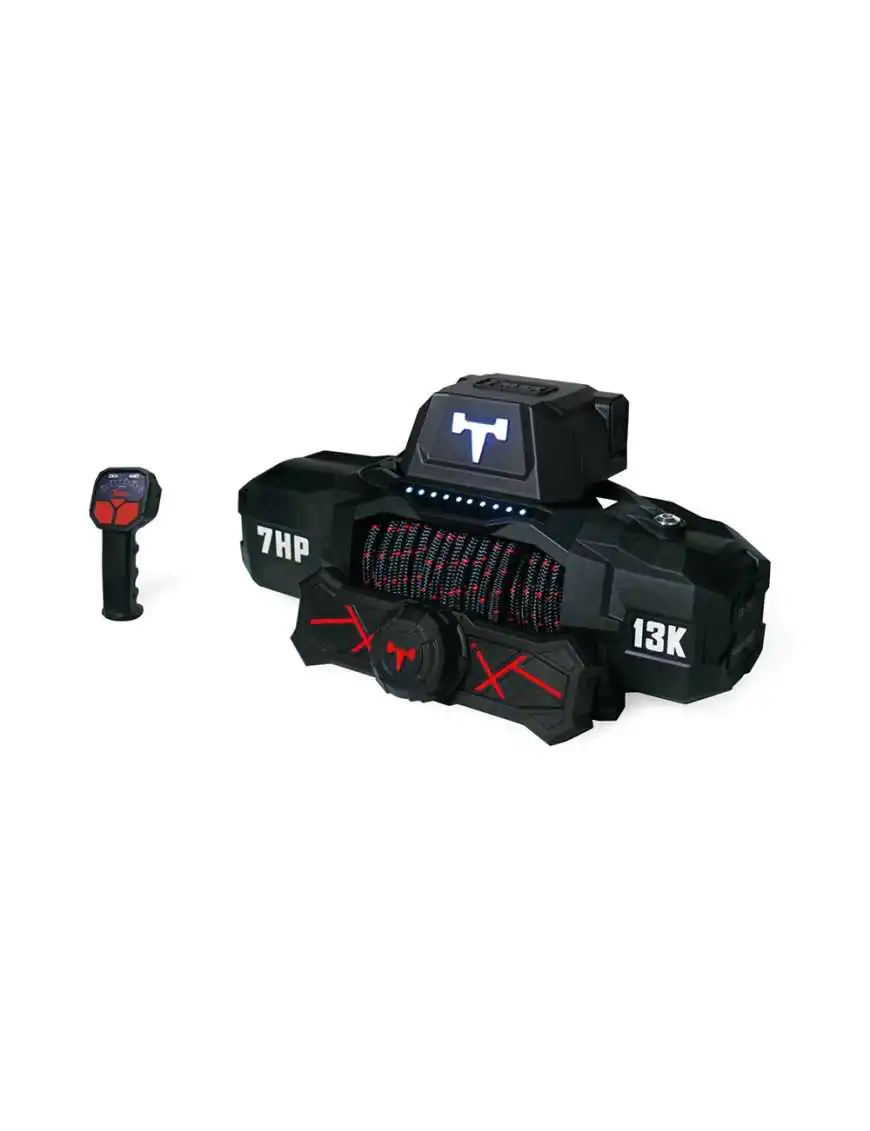

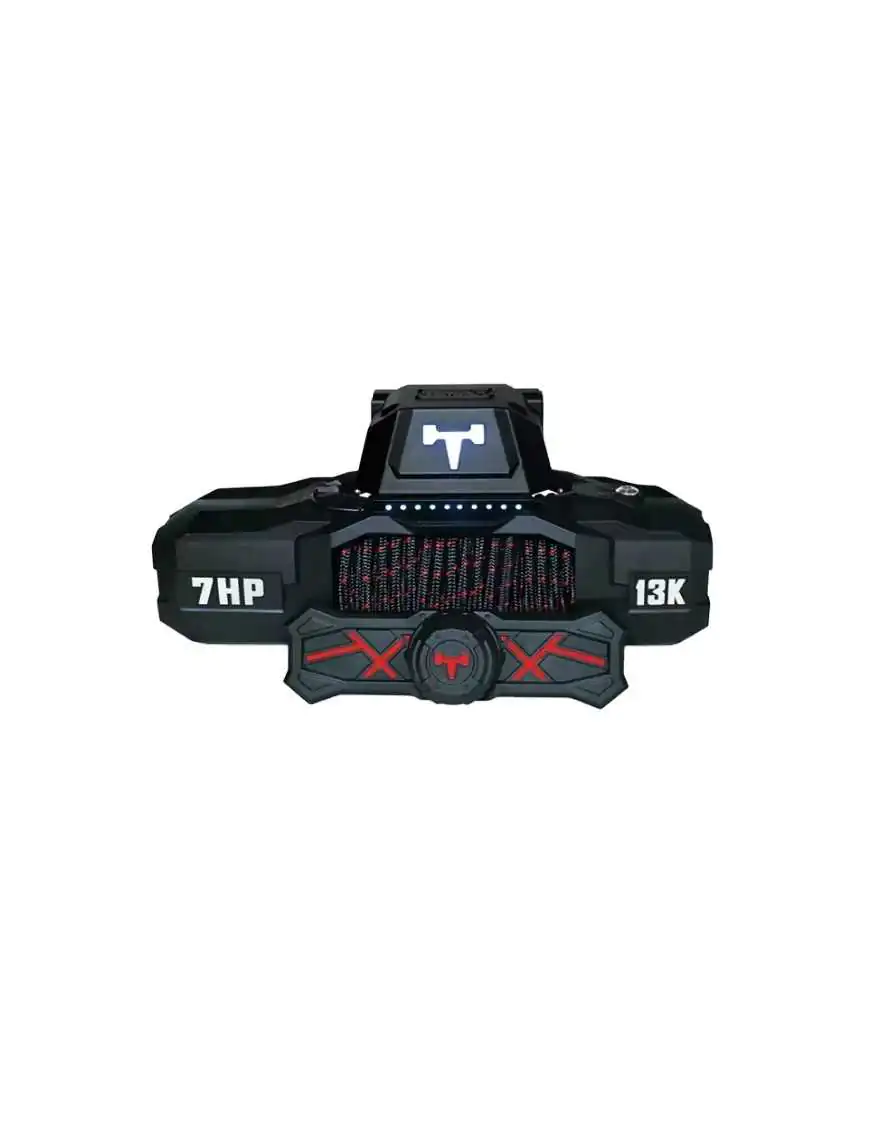

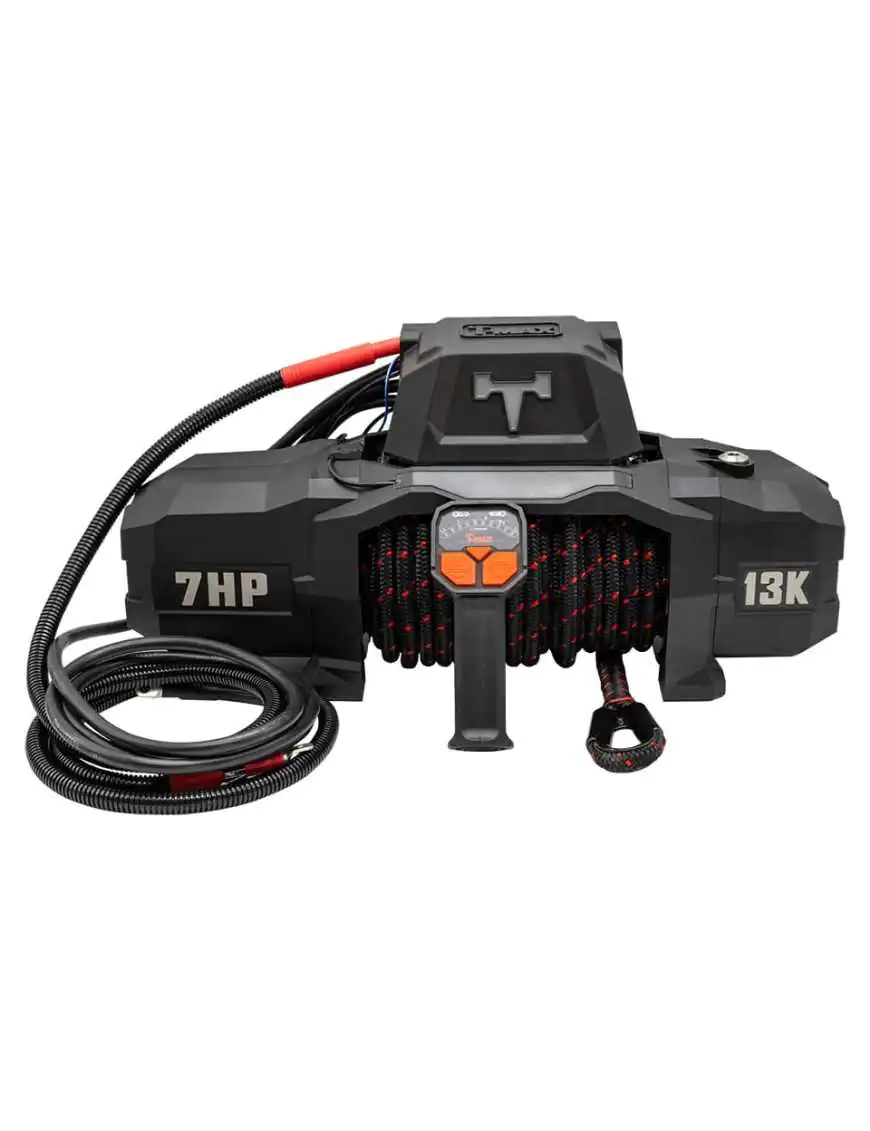

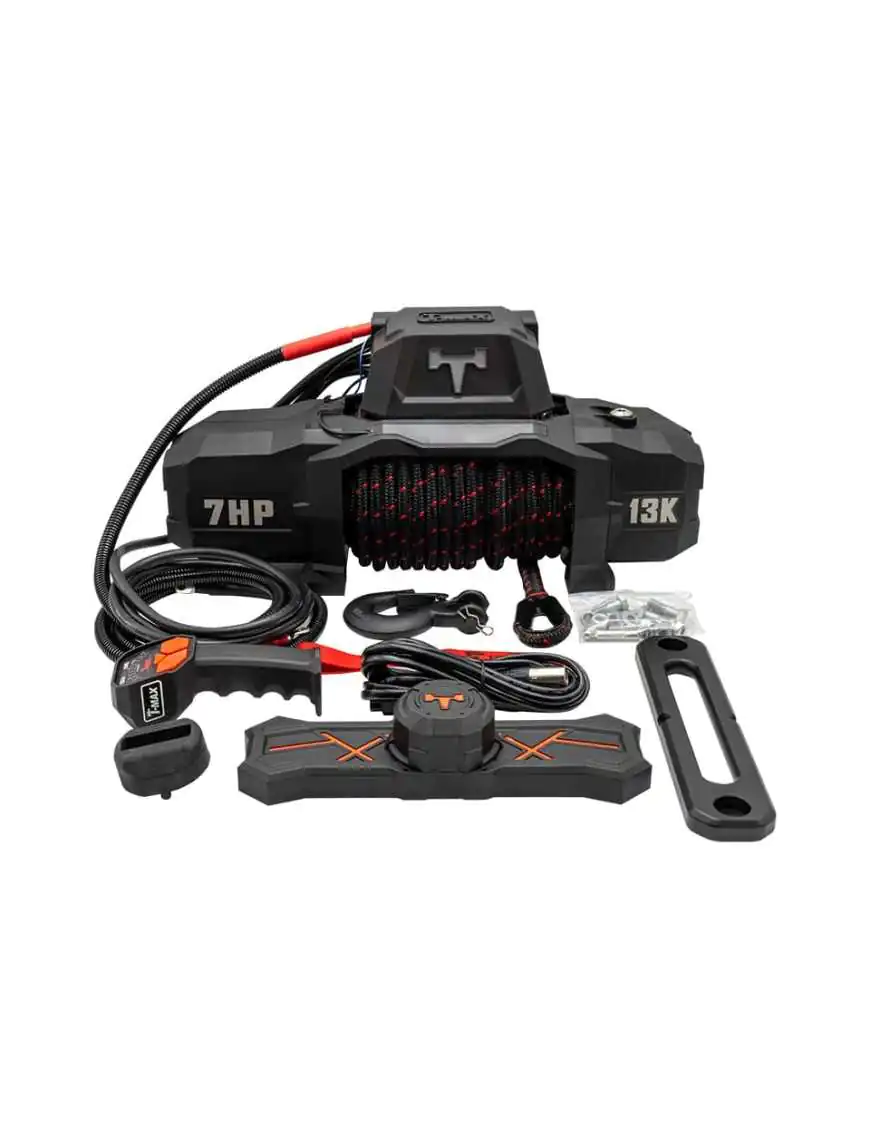

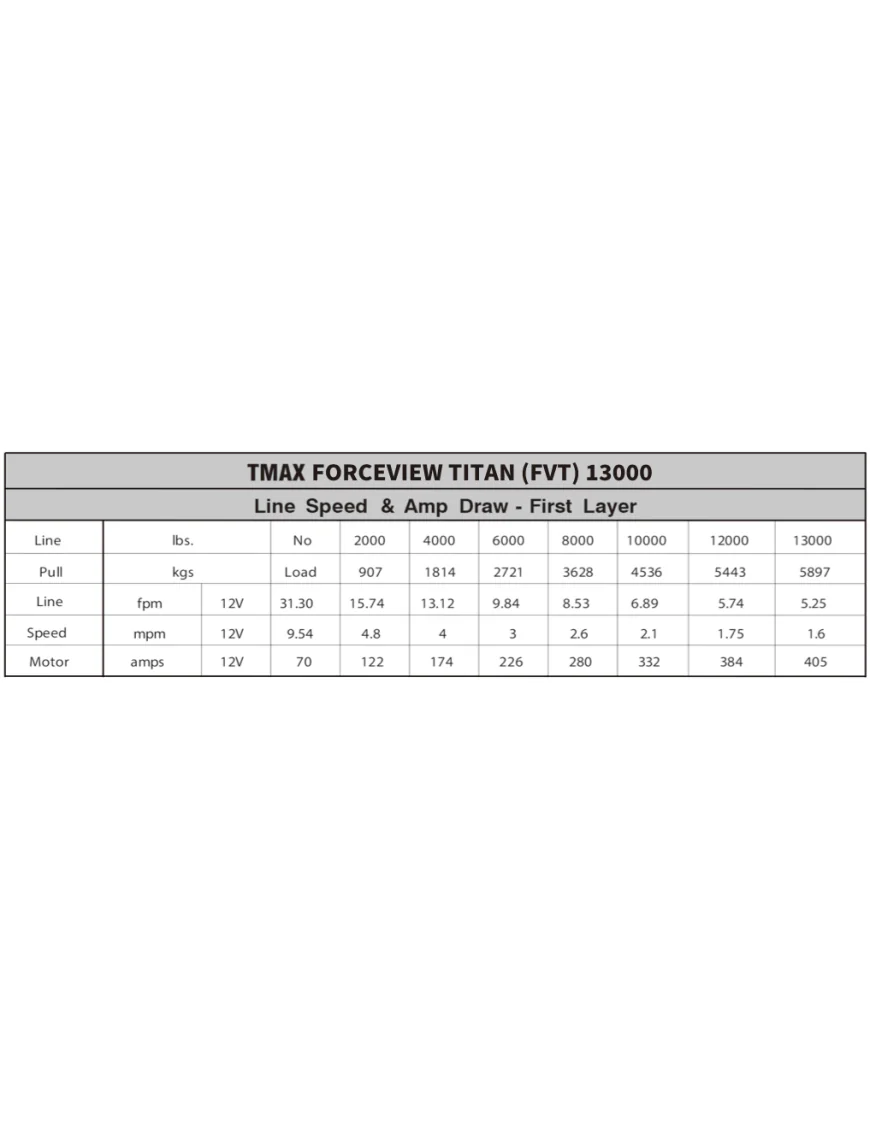

T-MAX FORCEVIEW TITAN(FVT) 13000 |
|||||||||
|
Line Speed & Amp Draw -First Layer |
|||||||||
Line |
lbs. |
No |
2000 |
4000 |
6000 |
8000 |
10000 |
12000 |
13000 |
|
Pull |
kgs. |
Load |
907 |
1814 |
2721 |
3628 |
4536 |
5443 |
5897 |
|
Line |
fpm |
12V |
31.30 |
15.74 |
13.12 |
9.84 |
8.53 |
6.89 |
5.74 |
5.25 |
Speed |
mpm |
12V |
9.54 |
4.8 |
4 |
3 |
2.6 |
2.1 |
1.75 |
1.6 |
Motor |
amps |
12V |
70 |
122 |
174 |
226 |
280 |
332 |
384 |
405 |
