| Single Rated Line Pull | 13000 lbs (5897KGS) |
| Motor | 7HP Series Wound |
| Controller | 12-foot Remote Switch |
| Gear Grain | 3-Stage Planetary |

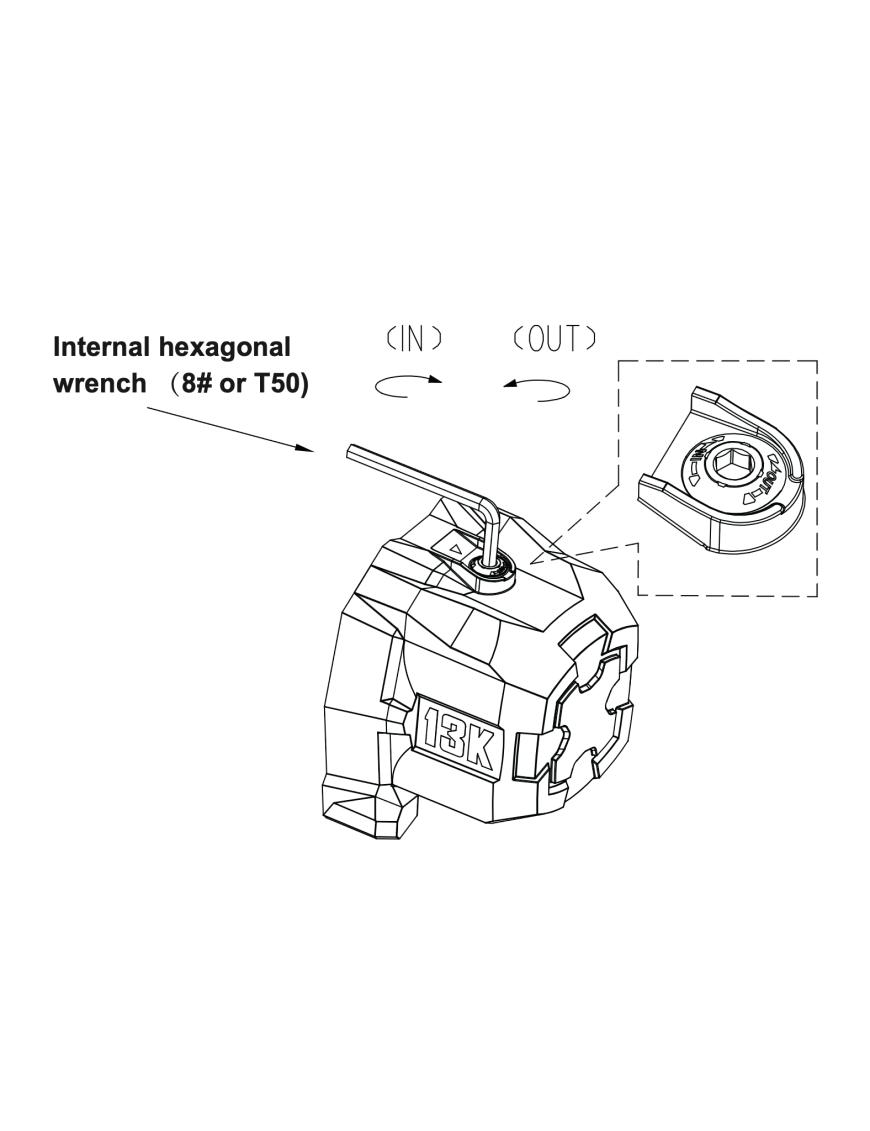

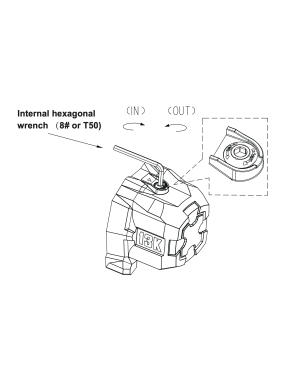

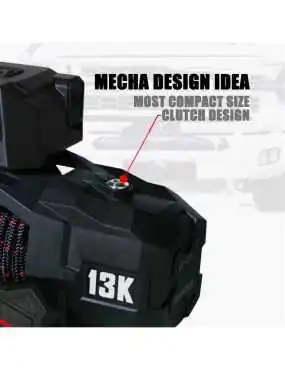

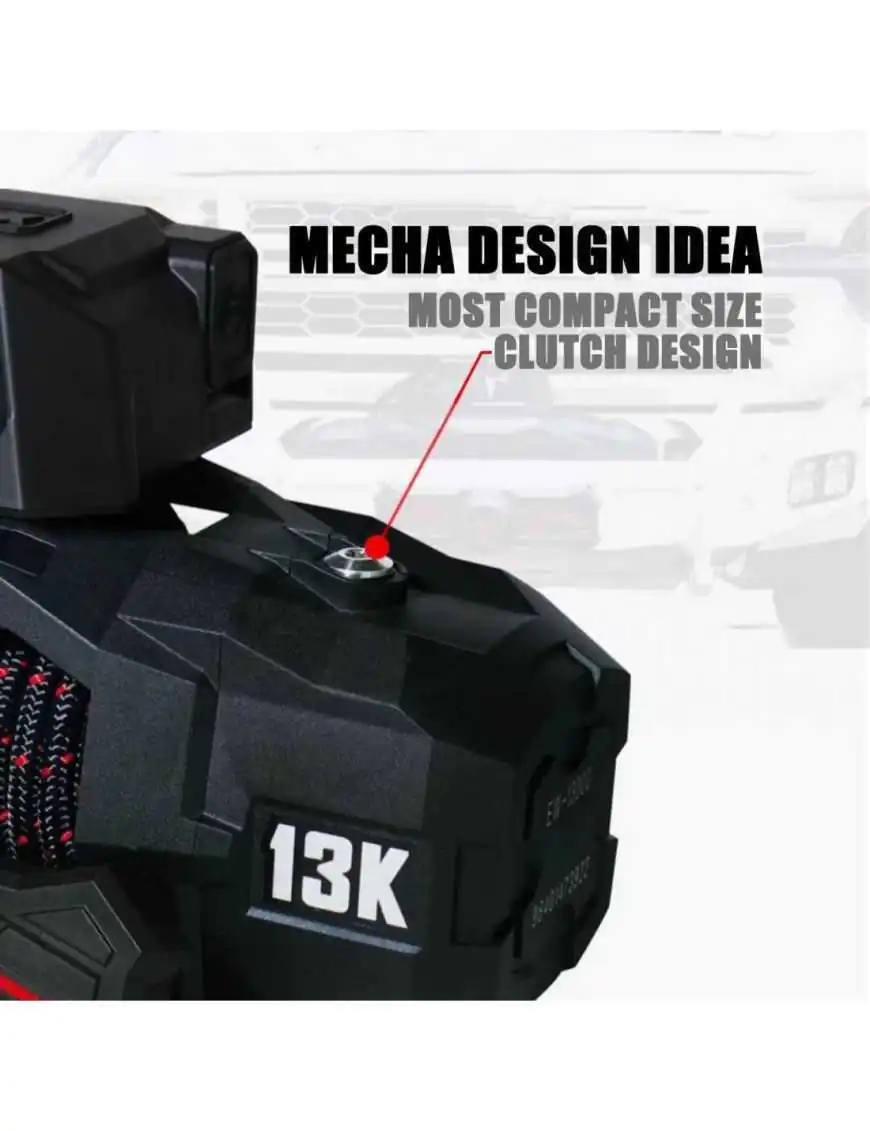

| Clutch | Sliding Ring Gear |
| Braking | Automatic in-The-drum |
| Drum Size | Dia.2.5’’(63.5mm) x Length 9.6’’(224mm) |

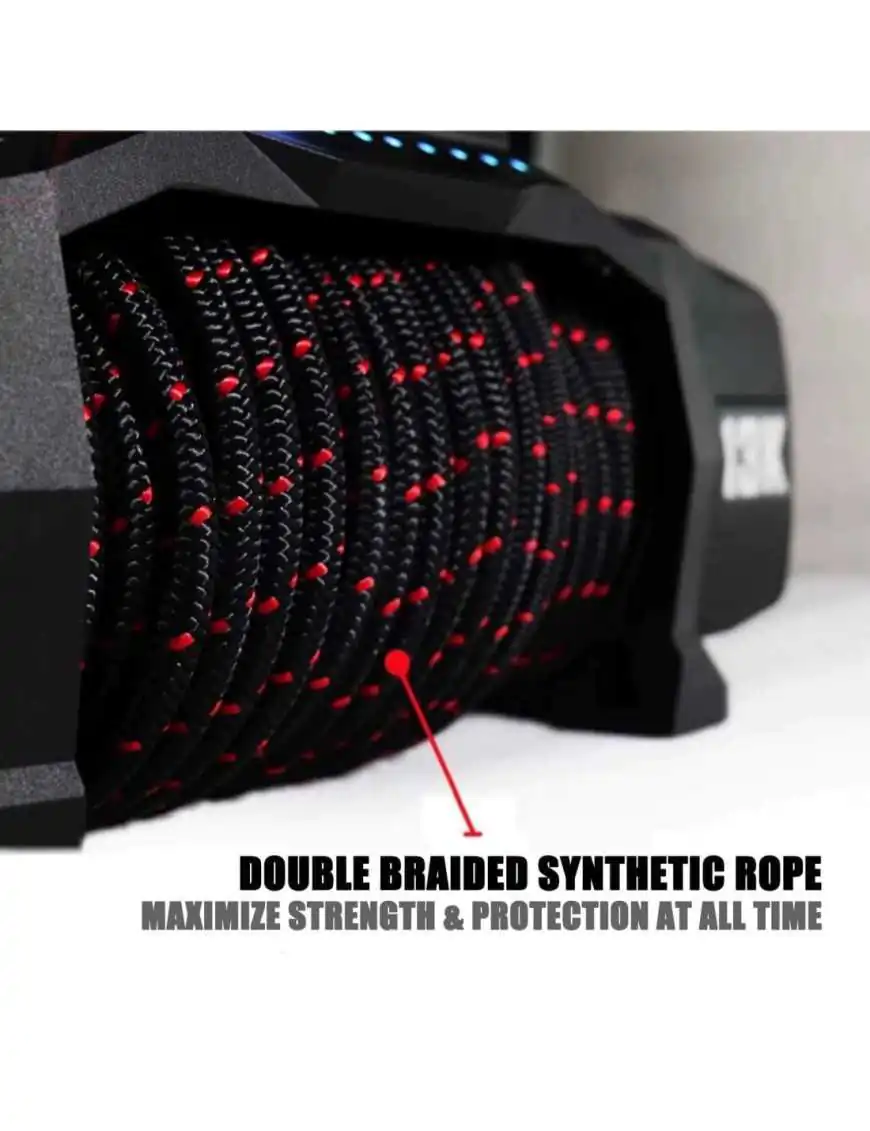

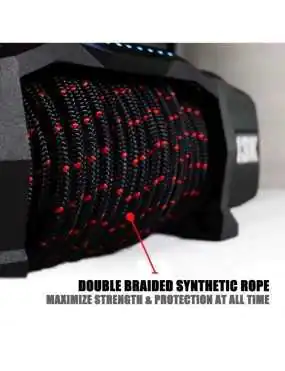

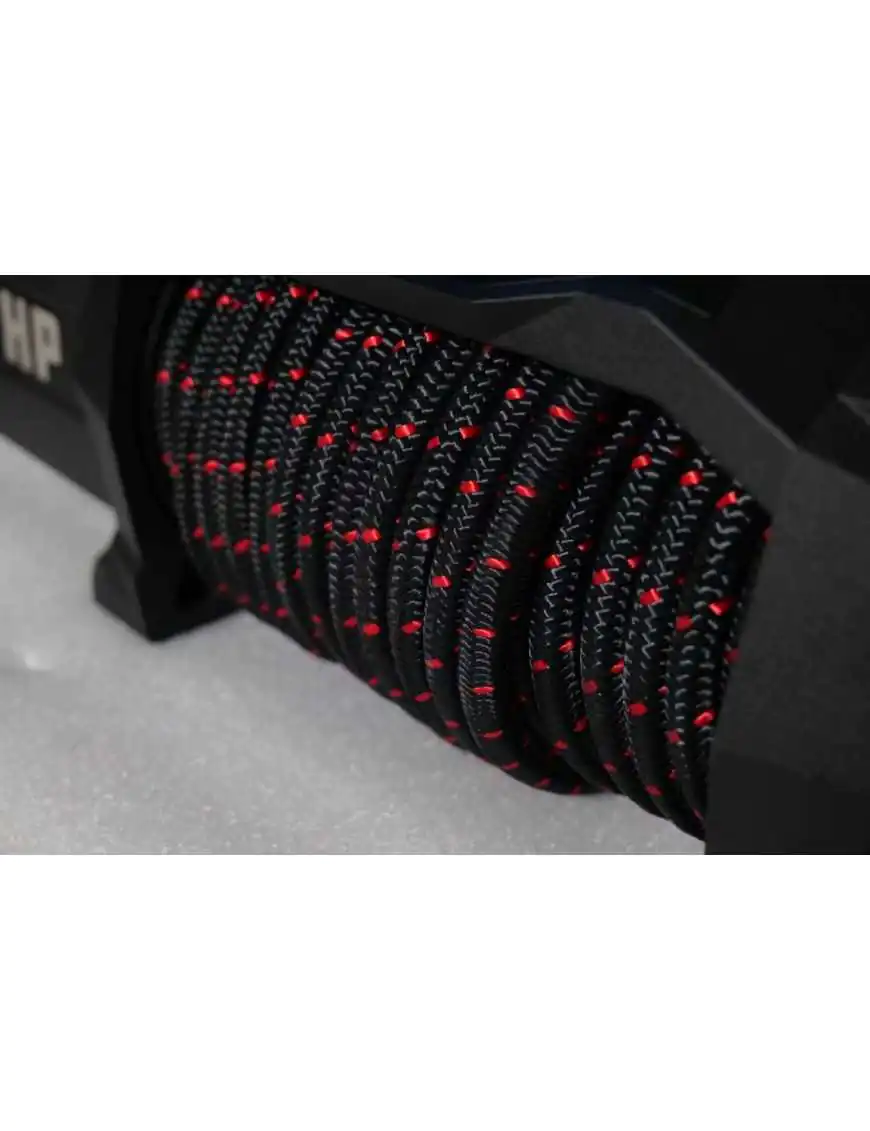

| Synthetic Rope (COMP series） | 12mmx28m |
| Fairlead (COMP Series) | Aluminum Hawse Fairlead |

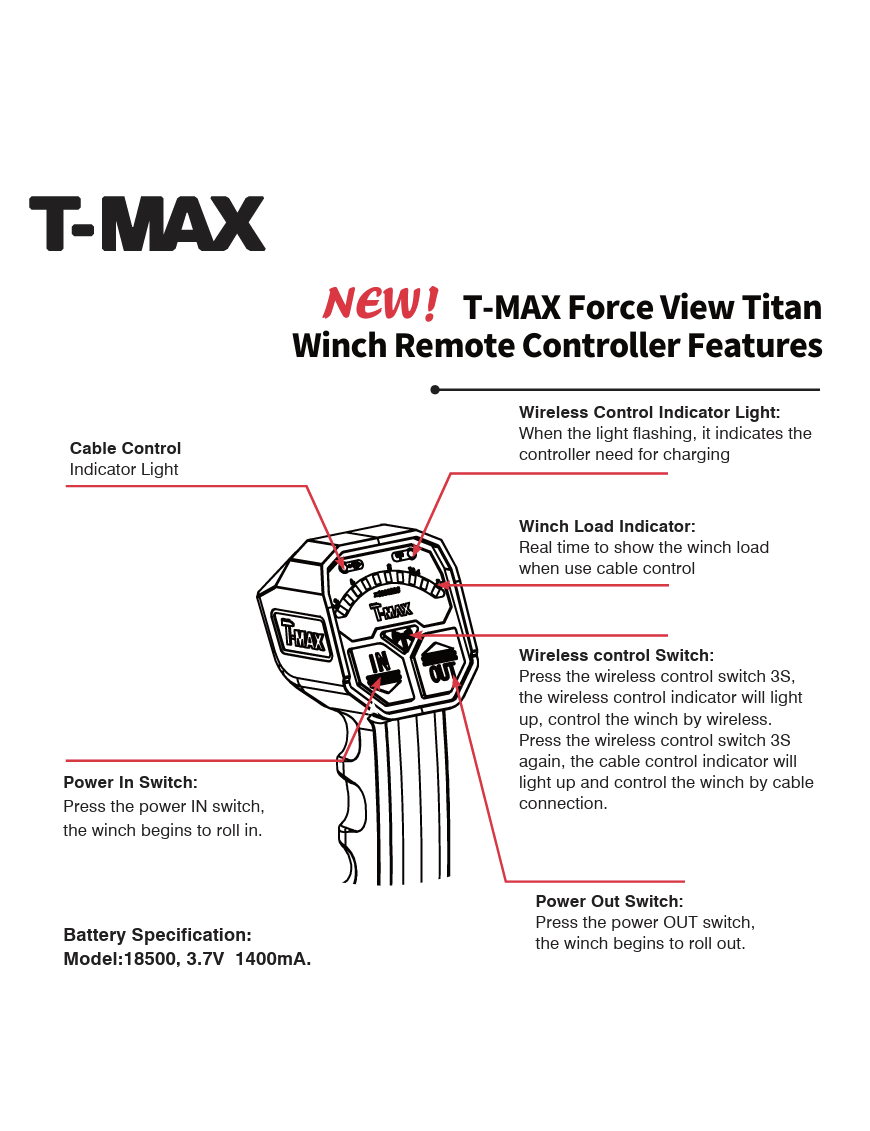

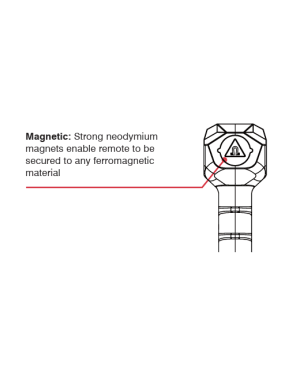

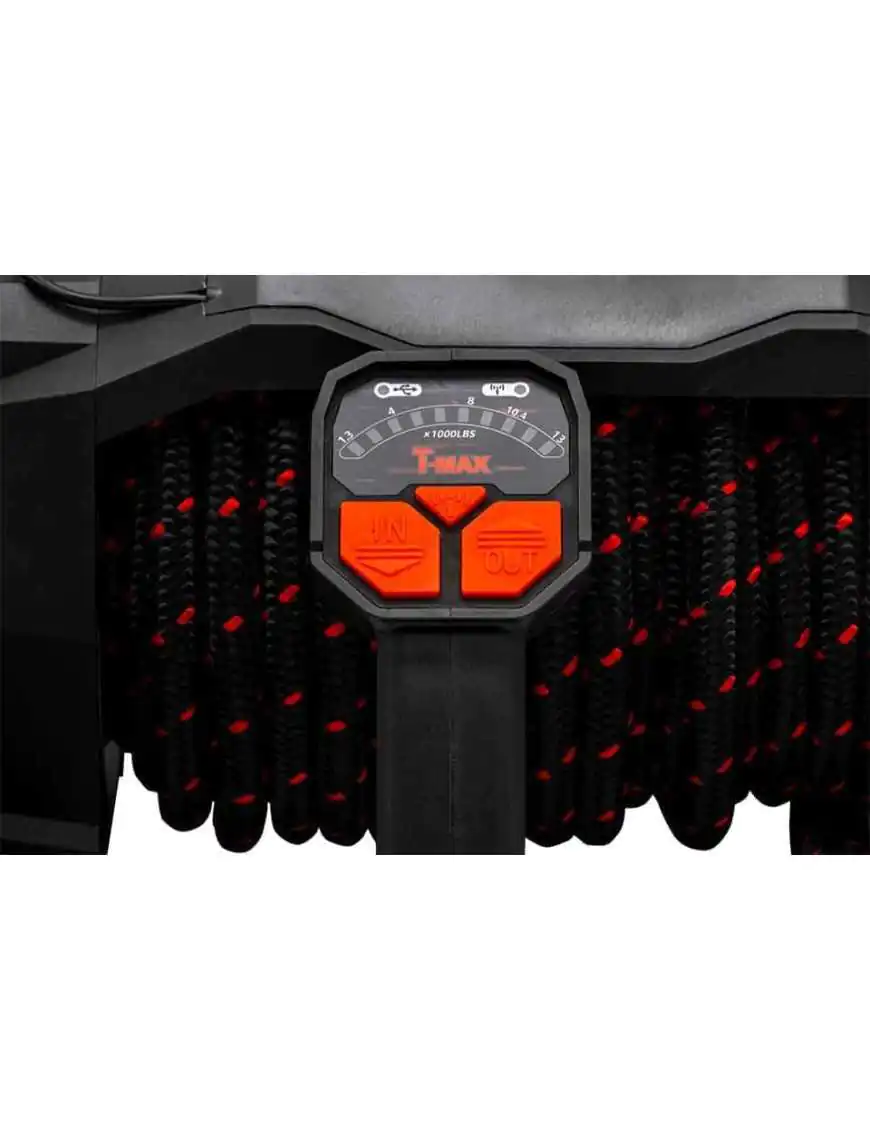

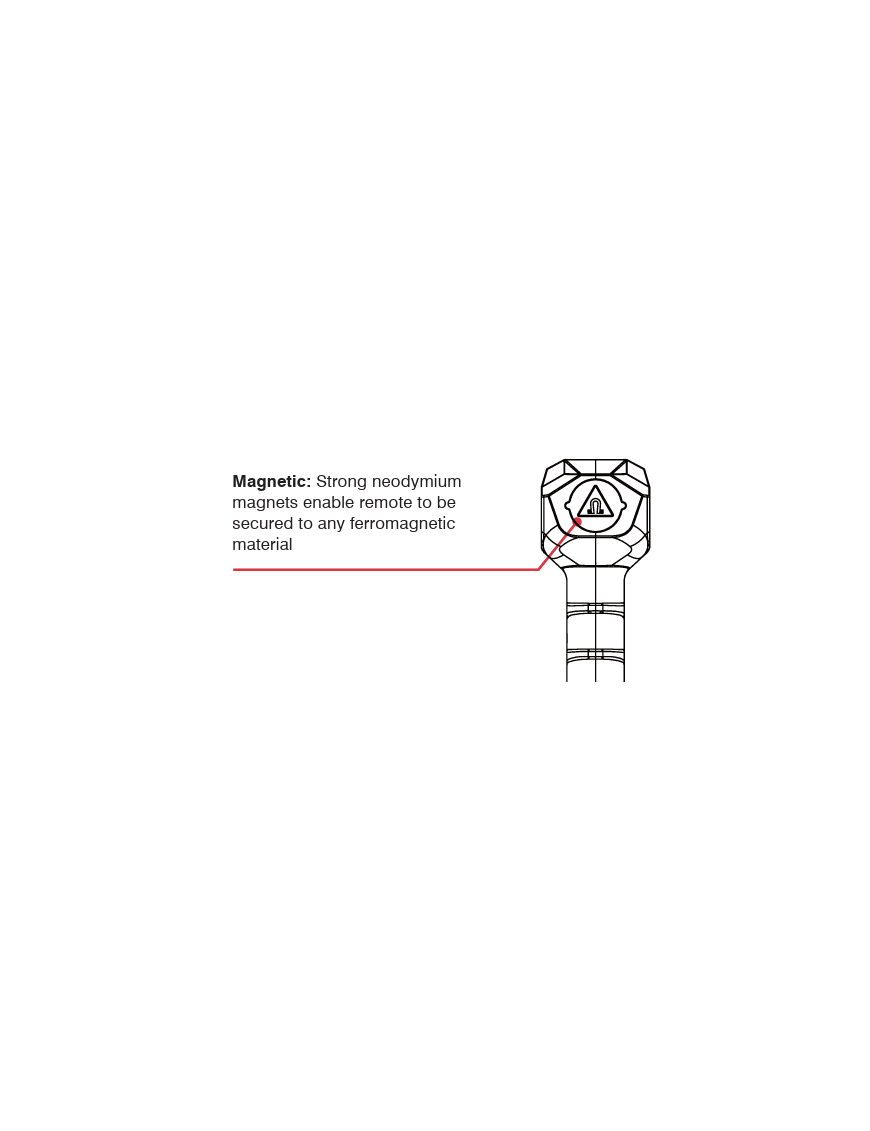

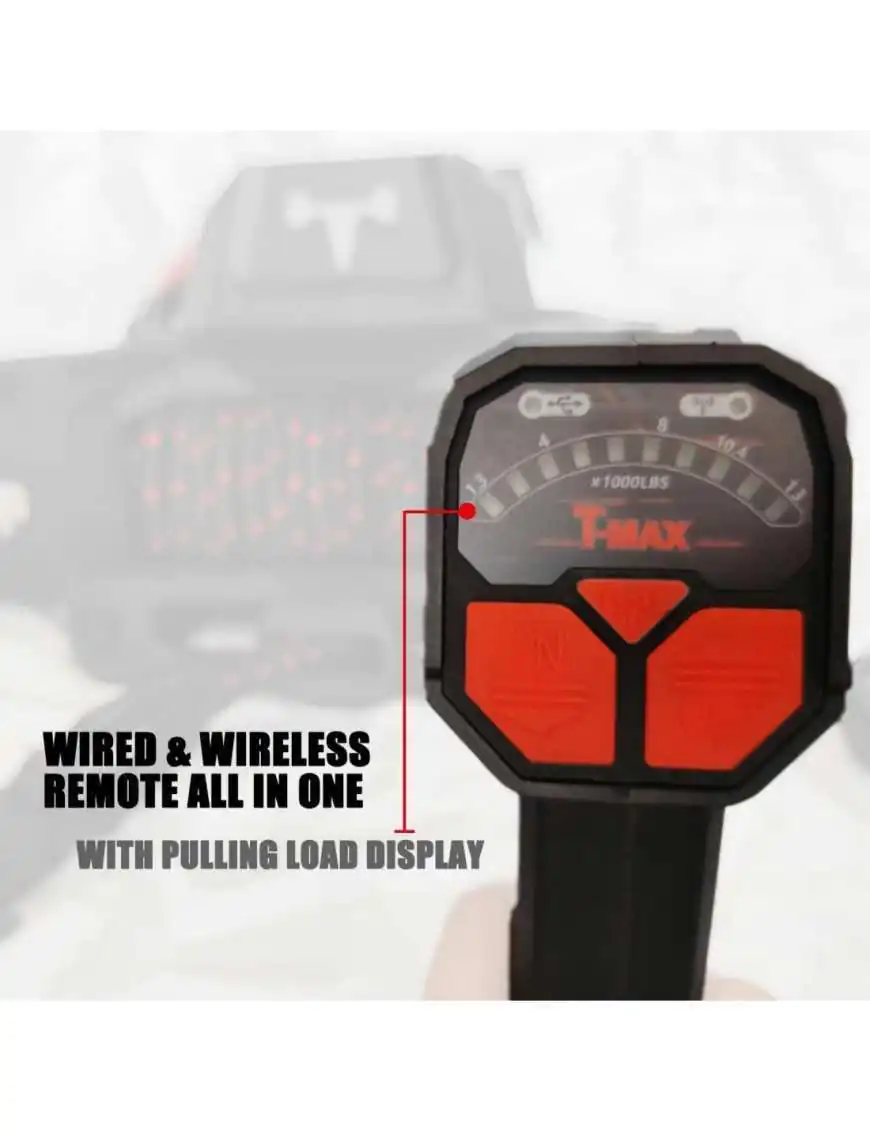

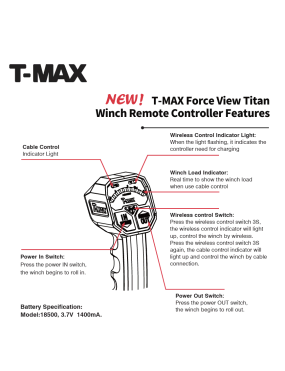

| Remote Control | Included |
| Battery | Recommended 650CCA |
| Battery Leads | 1.83m |
| Net Weight | 78.1lbs, 29.5kg |

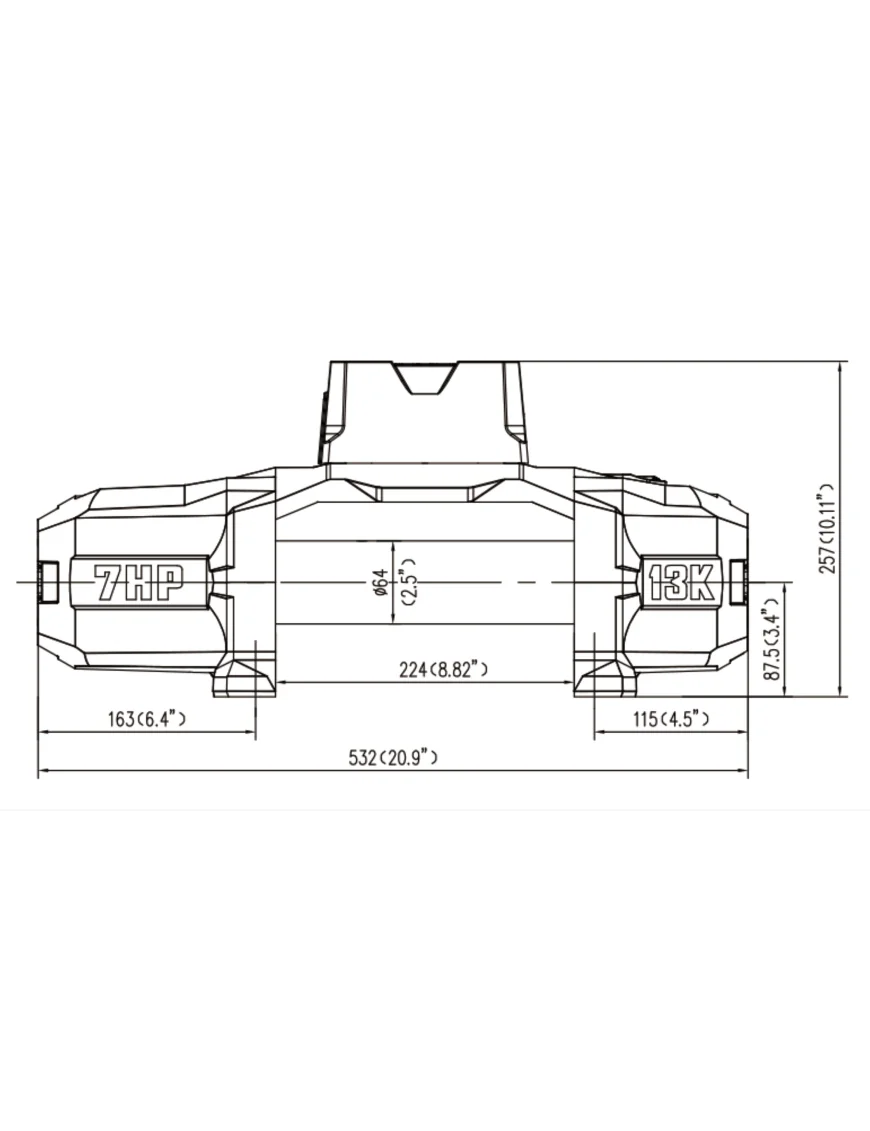

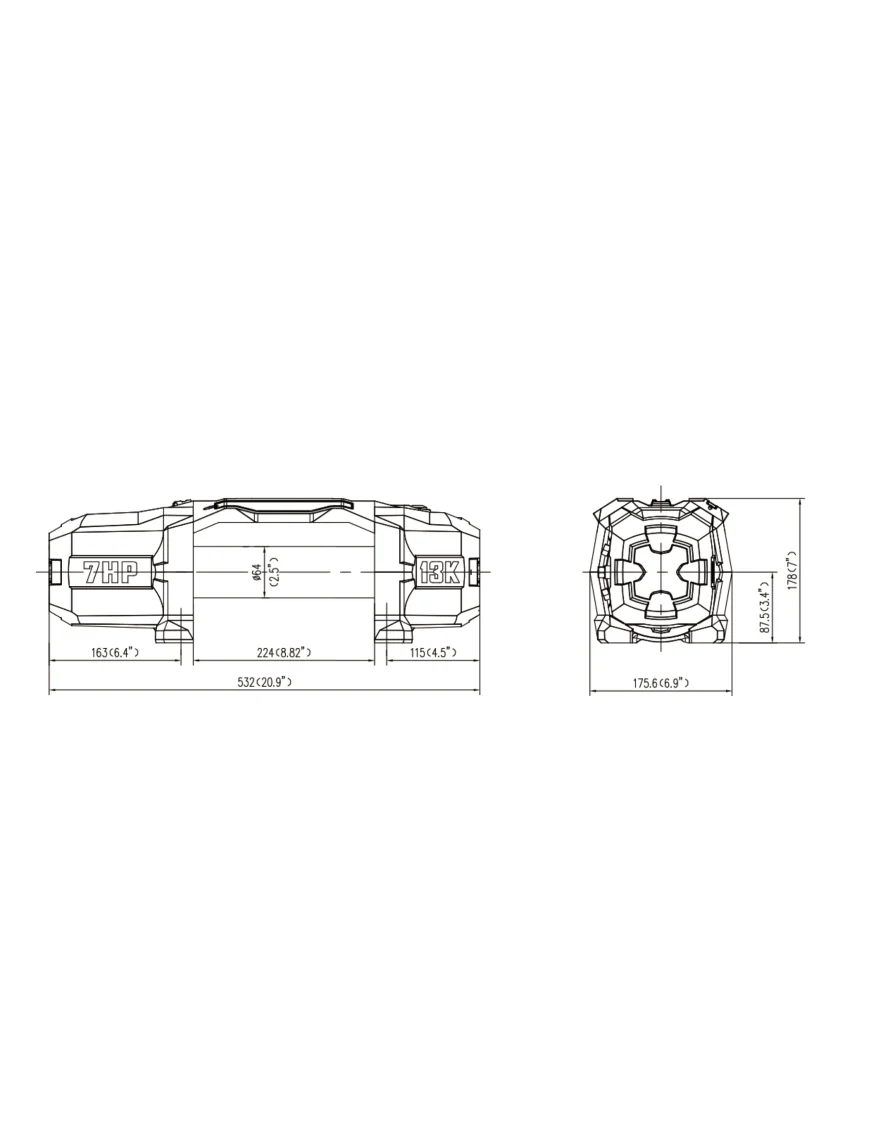

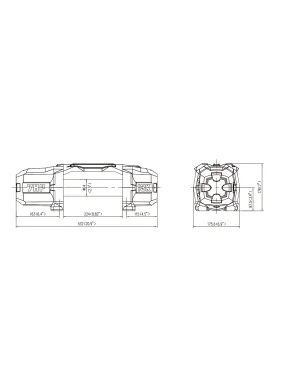

| Overall Dimensions (LxWXH) | 532x175x178mm |
| Mounting Bolt Pattern | 254x1143.3mm |

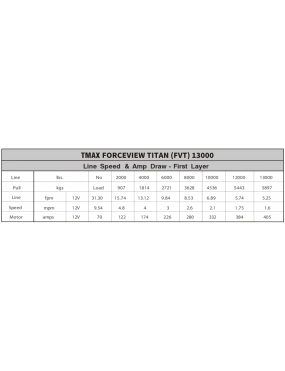

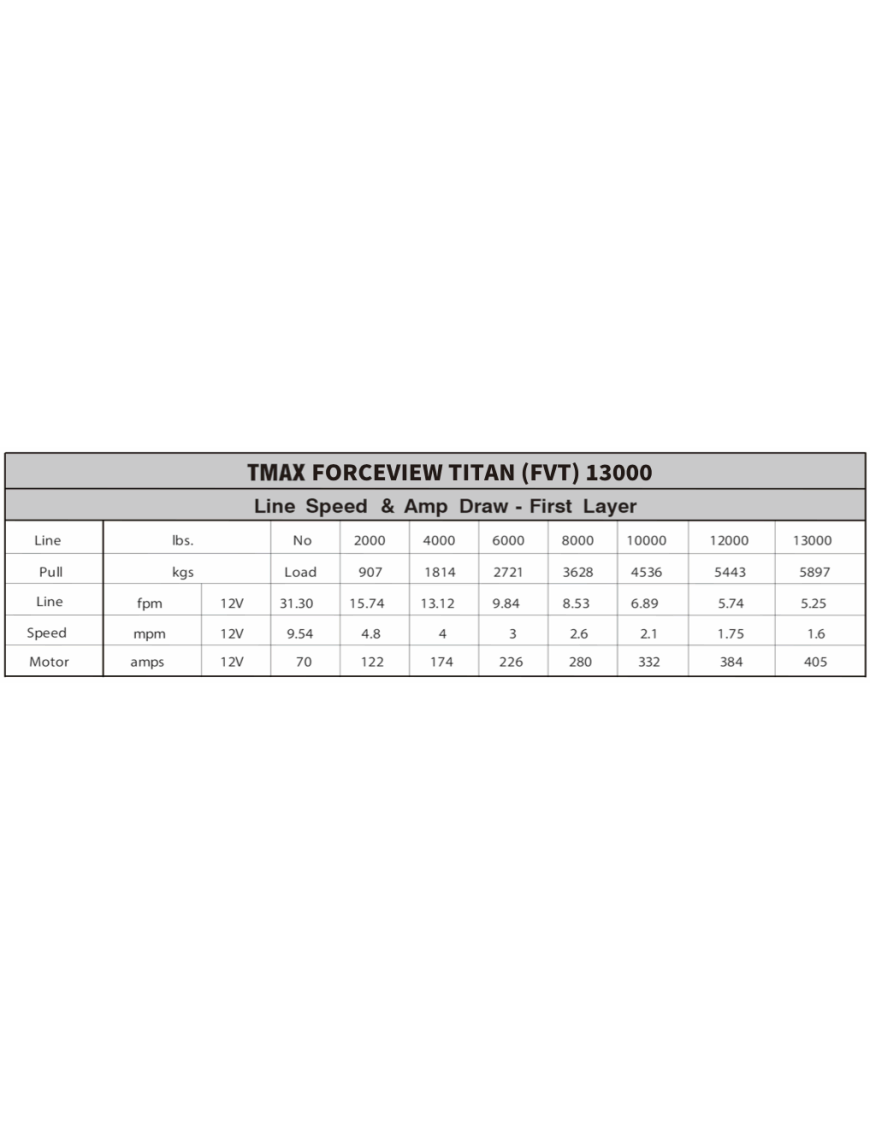

| T-MAX FORCEVIEW TITAN(FVT) 13000 | ||||||||||
| Line Speed & Amp Draw -First Layer | ||||||||||
| Line | lbs. | No | 2000 | 4000 | 6000 | 8000 | 10000 | 12000 | 13000 | |
| Pull | kgs. | Load | 907 | 1814 | 2721 | 3628 | 4536 | 5443 | 5897 | |
| Line | fpm | 12V | 31.30 | 15.74 | 13.12 | 9.84 | 8.53 | 6.89 | 5.74 | 5.25 |
| Speed | mpm | 12V | 9.54 | 4.8 | 4 | 3 | 2.6 | 2.1 | 1.75 | 1.6 |
| Motor | amps | 12V | 70 | 122 | 174 | 226 | 280 | 332 | 384 | 405 |
